Water Street Bridge Restoration
Project Type
Historic Bridge Restoration — Bridge Deck Replacement
Location
Town of St. Mary’s, Ontario, Canada
Date
2016
Team
B.M. Ross and Assoc Ltd.
McLean Taylor Construction Ltd.
Supreme Steel
Saskatoon SK
Historic Bridge Restoration — Bridge Deck Replacement
Town of St. Mary’s, Ontario, Canada
2016
B.M. Ross and Assoc Ltd.
McLean Taylor Construction Ltd.
Supreme Steel
Saskatoon SK
After safety concerns kept it closed for two years, the Water Street Bridge in St. Marys, Ontario, Canada, needed a deck that was both strong and light. Engineers found the answer in the Sandwich Plate System (SPS), which became the centerpiece of the historic span’s restoration.
The Water Street Bridge, a seven-panel Pratt through truss dating to 1898, stands out as one of the area’s rare pin-connected structures.
Over the decades, however, heavy use and harsh winters took their toll. Drivers routinely ignored the bridge’s 5-ton load limit.
Each winter, road salt sent saltwater seeping into the steel, steadily eating away at the superstructure. At the time of the bridge restoration, an asphalt-over-wood deck carried traffic across the span.
To match the remaining life of its load-restricted trusses, the bridge therefore needed a new, lightweight deck.
Engineers chose SPS because it strengthened the bridge and extended its lifespan while preserving the historic look and feel of the span.

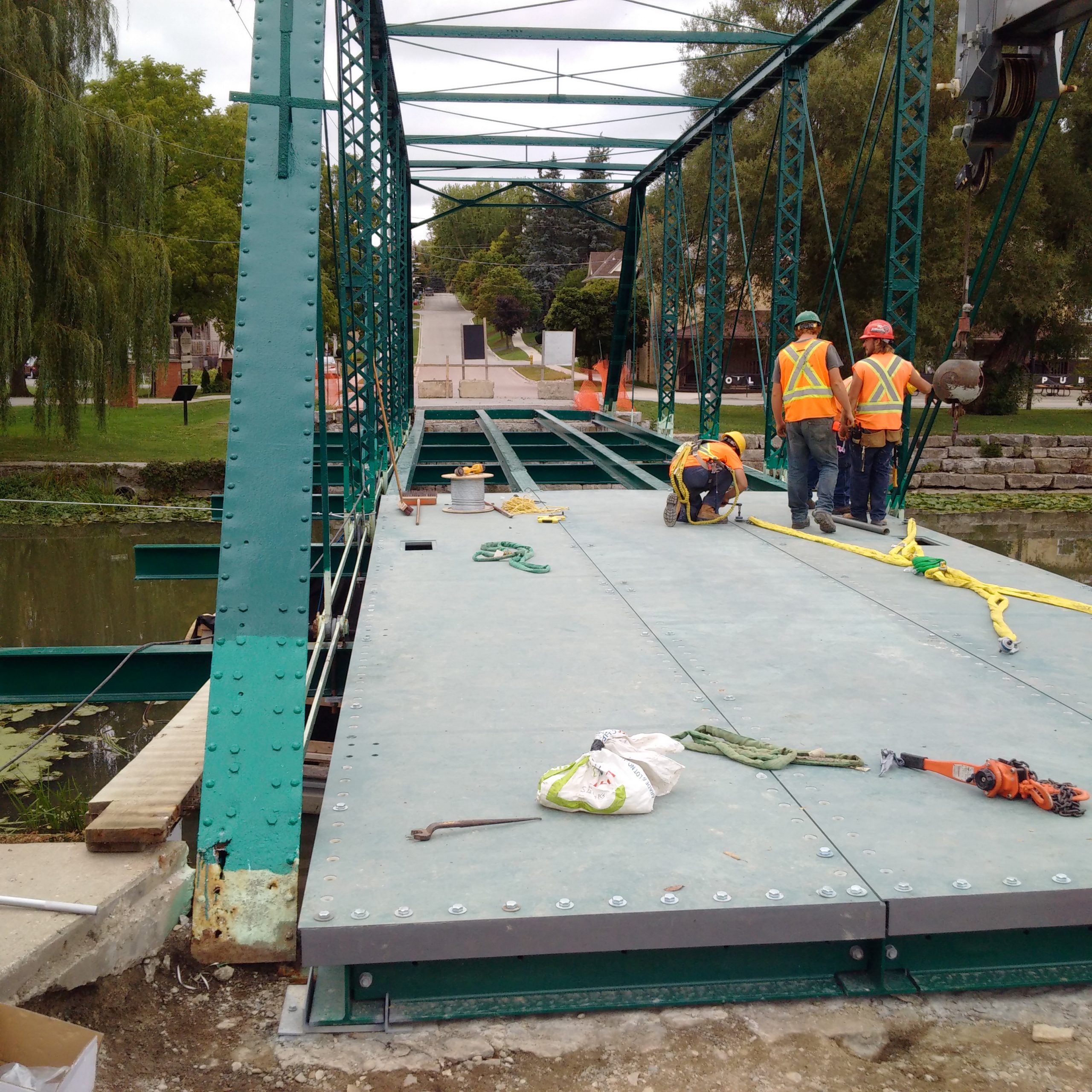

To begin the bridge restoration, crews removed the existing deck, sidewalks, stringers, and beams while keeping the original abutments in place. Next, they repaired and repainted the remaining superstructure. Finally, they installed new stringers, predrilled to match the bolt-hole pattern of the SPS deck.
A single truckload brought the entire 22-ton bridge deck to the site, including nine SPS panels that covered 151.4 m² [1,629 ft²]. By contrast, a concrete deck would have required two or possibly even three trucks.
Working with a small, lightweight crane, a single operator and four ground crew members:
Six years later, in 2022, the SPST team returned to photograph the finished bridge, as shown above.
